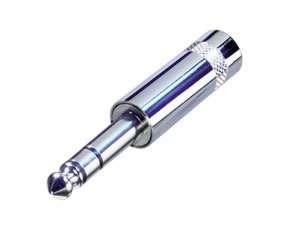

PLUG STEREO 6.3 METAL NEUTRIK ECONNYS202

Código: A11006N Más info del producto
$ 6.000

Ver todos los medios de pago
Ingresá el Código Postal para ver tus opciones de Envío y Retiro:
Comprar Agregar al Carrito
REAN NYS202
PLUG EST?REO 6.3 METAL

Technical Information
Product
Title: NYS202
Connection Type: Plug
Gender: male
Electrical
Dielectric strength: 0.5 kVdc
Insulation resistance: = 1 GO
Contact resistance: depends on mating connector
Rated current: depends on mating connector
Mechanical
Cable O.D._ = 6 mm
Lifetime: 1000 mating cycles
Wiresize
Wiresize: 24 AWG
Material
Contact plating: 2 ?m Ni
Contacts: Brass (CuZn39Pb3)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Insulation: Thermoplastic
Strain relief: Crimp type SnCe plated
Environmental
Solderability: Complies with IEC 68-2-20
Temperature range: -20 ?C to +70 ?C
